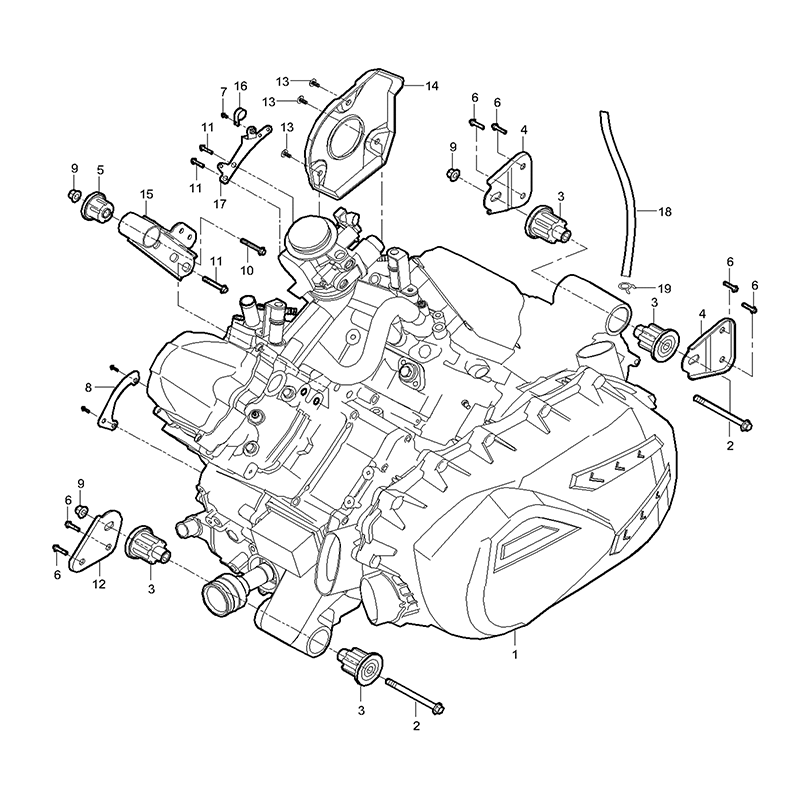

| 1 | 41000409121 | Engine Assembly 1000cc | |
| 2 | 01256101256 | Hex Flange Bolt M10X125X1.25 | |
| 3 | 21040206301 | Anti-vibration mount | |
| 4 | 17002180010 | Engine Rear Mounting Board | |
| 5 | 21021100301 | Engine Upper Hanging Bracket Rubber Boot | |
| 6 | 01224080166 | Hex Flange Bolt M8×16 | |
| 7 | 01254060166 | Hex Flange Bolt M6×16 | |
| 8 | 17012050060 | Water Outlet Mounting Board | |
| 9 | 04622100026 | Heagon Flange Locking Nut M10X1.25 | |
| 10 | 01256100506 | Hex Flange Bolt M10X50X1.25 | |
| 11 | 01225100206 | Hex Flange Bolt M10X20X1.5 | |
| 12 | 17002170010 | Engine Front Right Mounting Board | |
| 13 | 03414060124 | Inner Hexagonalobular Socket Pan Head Screw M6×12 | |
| 14 | 17007030120 | CVT Cover(Front Right) | |
| 15 | 17002110000 | Engine Upper Hanging Bracket, ATV1000 | |
| 16 | 10109380030 | Wire Harness Mounting Clamp 3 | |
| 17 | 17009010290 | Wire Fixing Board (1000Cc Only) | |
| 18 | 17003120720 | Rear Reducer Breath Tube, 2300mm | |
| 19 | 11904070030 | Spring Hose Clip φ8 | |
